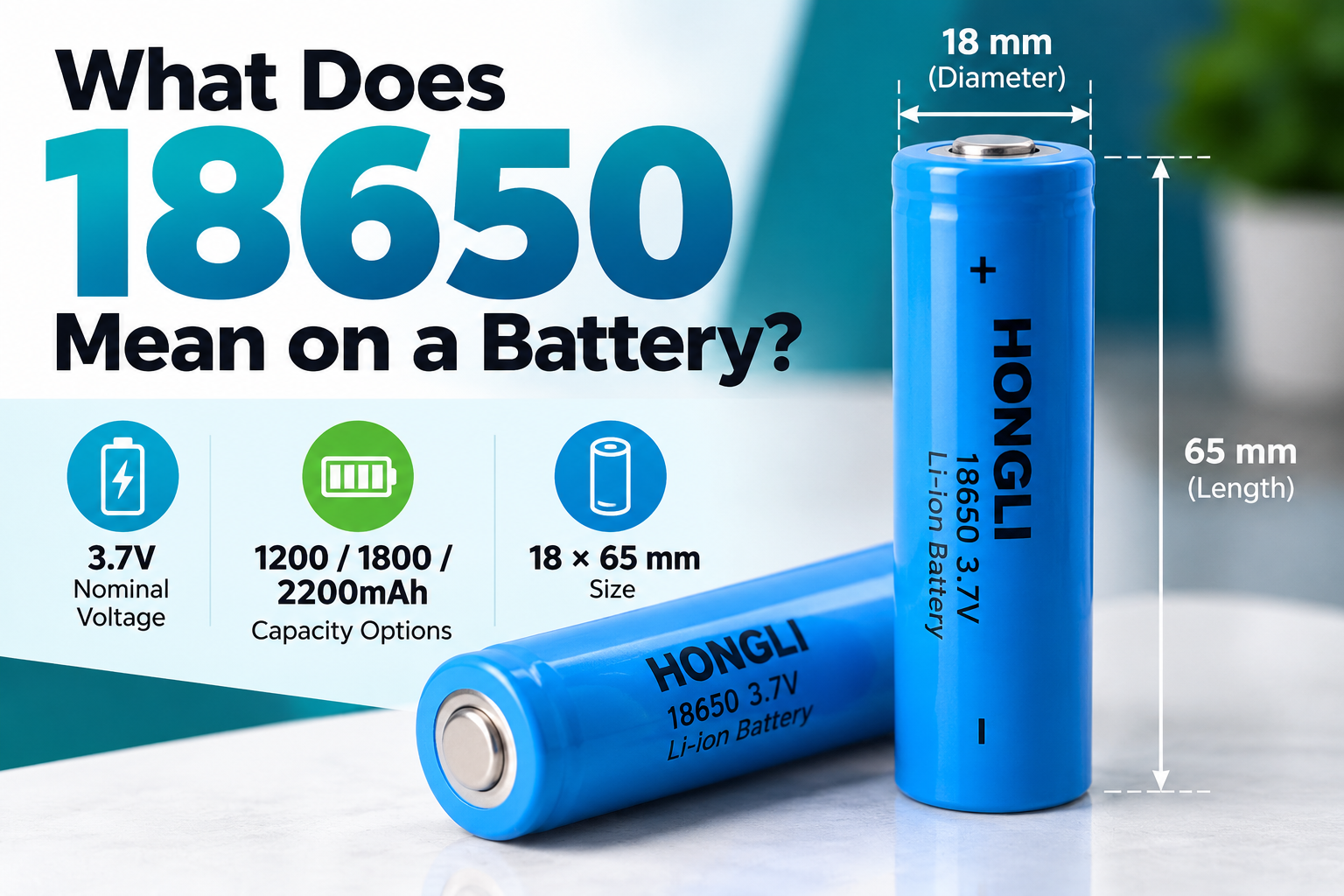

What Does 18650 Mean on a Battery? 18650 Battery Explained
If you have ever seen “18650” printed on a lithium-ion battery, you may wonder what these numbers actually mean. Does 18650 refer to the battery capacity, voltage, or something else?
The term 18650 refers mainly to the physical size and cylindrical format of the battery. An 18650 lithium-ion battery is approximately 18 mm in diameter and 65 mm in length. The number does not indicate the battery's capacity.
What Does 18650 Mean?
The name 18650 comes from the approximate dimensions of the cylindrical battery:
- 18 = approximately 18 mm diameter
- 65 = approximately 65 mm length
- 0 = cylindrical battery format
Therefore, an 18650 battery is a cylindrical rechargeable lithium-ion cell with a standard form factor.
The actual dimensions can vary slightly depending on the manufacturer, cell construction, protection circuit, or terminal design.
Is 18650 the Battery Capacity?
No. 18650 is not the capacity of the battery.
Battery capacity is normally specified in mAh (milliampere-hours).
For example, an 18650 lithium-ion battery may be available in different capacities such as:
- 1200mAh
- 1800mAh
- 2200mAh
Two batteries can both be 18650 cells while having different capacities.
What Is the Voltage of an 18650 Battery?
A typical lithium-ion 18650 cell has a nominal voltage of 3.7V.
When fully charged, the voltage generally reaches approximately 4.2V.
This means a 3.7V 18650 battery should not be treated as a battery that always measures exactly 3.7V. The voltage changes depending on its state of charge.
What Are the Dimensions of an 18650 Battery?
The standard 18650 format is approximately:
Diameter: 18 mm Length: 65 mm
The exact overall dimensions can differ slightly between individual battery models.
This compact cylindrical format has made 18650 cells widely used in battery packs and electronic devices.
What Is the Capacity of a HONGLI 18650 Battery?
HONGLI 18650 lithium-ion batteries are available in different capacity options depending on the requirement.
The available capacities include:
1200mAh, 1800mAh and 2200mAh
All of these can use the same 18650 form factor while providing different energy-storage capacities.
Where Are 18650 Batteries Used?
18650 lithium-ion cells are used in a wide range of electronic and battery-powered applications.
Common applications include:
- LED lighting
- Portable electronic devices
- Rechargeable battery packs
- Emergency lighting
- Portable equipment
- Electronic products
- Power backup systems
- DIY battery packs
- Industrial electronic equipment
The suitability of a particular 18650 cell depends on its voltage, capacity, discharge characteristics, protection requirements, and the specifications of the equipment.
What Is the Difference Between 18650 and 3.7V?
18650 and 3.7V describe different characteristics of the battery.
18650 refers primarily to the cell's physical form factor, while 3.7V refers to its nominal voltage.
For example, a battery can be described as:
HONGLI 18650 3.7V Lithium-Ion Battery
Here:
- 18650 = cylindrical cell size/form factor
- 3.7V = nominal voltage
- 1200/1800/2200mAh = available capacity options
Understanding these specifications makes it easier to select the appropriate battery for an application.
Why Is the 18650 Battery So Common?
The 18650 format provides a compact cylindrical design that can store a useful amount of energy while allowing multiple cells to be combined into battery packs.
Multiple 18650 cells can be connected in different configurations to achieve the required voltage and capacity for a particular application. However, battery packs should be designed with appropriate protection, charging, balancing, and thermal considerations.
Conclusion
So, what does 18650 mean on a battery?
The term 18650 identifies a common cylindrical lithium-ion battery format, approximately 18 mm in diameter and 65 mm long. It does not directly indicate the battery's voltage or capacity.
For a HONGLI 18650 battery, specifications such as 3.7V nominal voltage, 4.2V full-charge voltage, and 1200mAh, 1800mAh or 2200mAh capacity provide additional information about the cell's electrical characteristics.
Understanding the difference between battery size, voltage, and capacity is important when selecting an 18650 lithium-ion battery for lighting, electronics, battery packs, and other applications.
