What Size Cable Fits a PG-7 12×1 Cable Gland?
Choosing the correct cable gland is important for creating a secure connection between a cable and an electrical enclosure, LED light, junction box, or other electrical equipment. One common small-size option is the PG-7 cable gland, which is widely used where compact cable entry and reliable cable retention are required.
But what cable size actually fits a PG-7 cable gland? And what does 12×1 mean when it is mentioned with the gland?
In this guide, we explain the difference between the thread size and cable diameter, how to select the right cable gland, and where a small PG-7 cable gland can be used.
What Is a PG-7 Cable Gland?
A PG-7 cable gland is a compact cable-entry fitting designed to secure a cable where it enters an electrical enclosure or lighting product.
It performs several important functions:
- Holds the cable securely in position
- Helps prevent the cable from being pulled out
- Provides sealing around the cable entry
- Helps protect the enclosure from dust and moisture when the appropriate IP-rated gland is used
- Provides a neat and professional cable-entry solution
Because of its compact size, PG-7 is particularly useful for smaller cables and compact electrical or lighting applications.

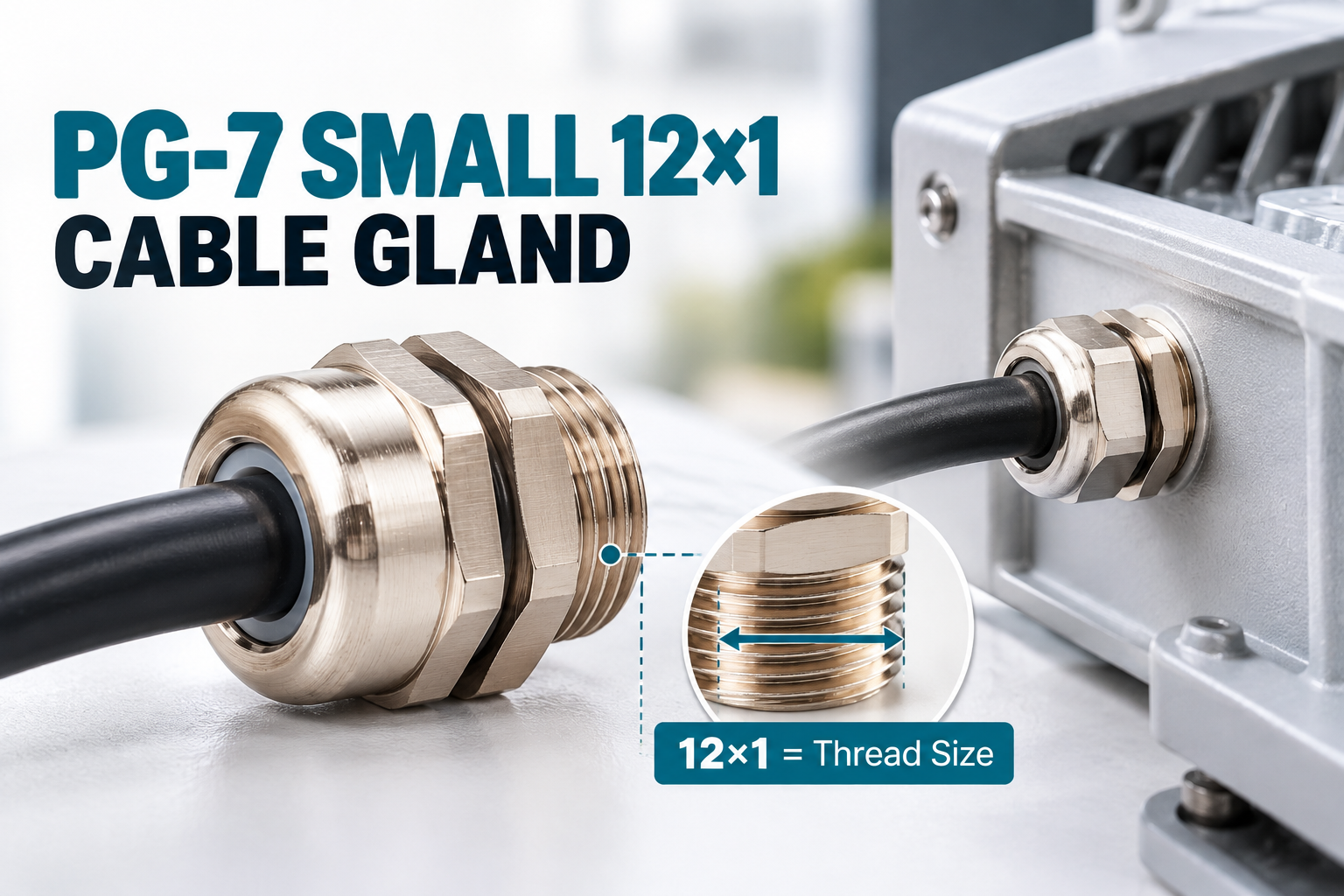

What Does 12×1 Mean in a Cable Gland?
When you see 12×1 specified for a cable gland, it refers to the thread dimensions, not the cable diameter.
The 12 mm refers to the approximate thread diameter, while 1 mm refers to the thread pitch.
This is important because the thread specification determines whether the gland can properly fit into the threaded hole or mounting point of an enclosure.
The cable itself is selected based on the gland's cable-entry range, which is separate from the thread specification.
In simple terms:
12×1 = thread specification
Cable diameter = the size of cable the gland is designed to accommodate
These two measurements should not be confused when selecting a cable gland.
What Size Cable Fits a PG-7 Cable Gland?
The correct cable size depends on the specific PG-7 cable gland design and its stated cable diameter range.
For example, a small PG-7 gland may be designed for cables in the approximate 3–6.5 mm range, depending on the particular model.
Therefore, before purchasing or installing a PG-7 cable gland, measure the outside diameter of the cable, rather than relying only on the cable's conductor size.
For example, a cable may have a particular conductor specification, but what matters for the gland seal is generally the overall outside diameter of the finished cable.
How Do You Measure a Cable for a PG-7 Gland?
Selecting the correct gland becomes easier when you measure the cable properly.
Step 1: Measure the outside diameter
Use a vernier caliper or suitable measuring tool to measure the complete outside diameter of the cable, including its outer insulation.
Step 2: Check the gland's cable range
Compare the measured cable diameter with the manufacturer's specified cable-entry range.
Step 3: Check the thread
Make sure the gland's thread matches the threaded hole in your enclosure or lighting product.
Step 4: Check the application
For outdoor or exposed applications, also check whether the gland provides the required level of protection against dust and water.
Choosing a gland only by thread size can result in an incorrect fit if the cable diameter is not considered.
Where Are Small PG-7 Cable Glands Used?
Small cable glands are useful in applications where space is limited and the cable entering the enclosure is relatively small.
Common applications include:
LED Lighting
PG-7 cable glands can be used in suitable LED lighting products for cable entry and cable retention.
Outdoor Lighting
They can be used in lighting equipment where a suitable weather-resistant or IP-rated cable-entry solution is required.
Electrical Enclosures
Small control boxes, junction boxes and electrical enclosures may require compact cable glands for cable entry.
Power Supplies and Electronic Equipment
Compact electronic equipment often has limited space, making a small cable gland useful for organized cable entry.
Industrial and Commercial Equipment
Small cable glands can also be used in control equipment, panels, machinery and other electrical assemblies where the cable diameter and gland specifications are compatible.
Why Is Choosing the Correct Cable Size Important?
The cable gland should be correctly matched to the outside diameter of the cable.
If the cable is too small for the gland's sealing range, the seal may not work as intended.
If the cable is too large, it may not pass through the gland properly or may place excessive pressure on the gland components.
A correctly matched cable gland helps provide:
- Better cable retention
- Proper sealing
- A cleaner installation
- Protection at the cable-entry point
- More reliable long-term performance
For applications where protection against dust and water is important, the complete gland, cable and enclosure installation should be selected according to the required protection level.
PG-7 vs 12×1: Are They the Same Thing?
This can be confusing because PG-7 and 12×1 may appear together in a product specification.
They refer to different aspects of the cable gland.
PG-7 identifies the gland size/type.
12×1 identifies the thread specification when the particular gland is manufactured with that thread.
The cable diameter is another specification altogether.
Therefore, when selecting a cable gland, consider all three:
Gland size + thread specification + cable diameter
This ensures that the gland can be installed correctly and accommodate the intended cable.
How Do I Choose the Right Small Cable Gland?
Before ordering a small cable gland, check these specifications:
1. Cable outside diameter: Measure the complete cable.
2. Thread size: Check the hole or threaded entry on your equipment.
3. Thread type: Make sure the gland thread matches the enclosure.
4. Protection requirement: For outdoor or wet environments, select a suitable IP-rated gland.
5. Material: Choose the appropriate gland material for the application and environment.
6. Quantity: Manufacturers, lighting companies and electrical traders may require cable glands in bulk for production and assembly.
PG-7 Cable Glands for Bulk Requirements
For LED lighting manufacturers, electrical manufacturers, OEMs, panel builders and traders, small cable glands are often required in larger quantities for regular production and assembly.
A consistent supply of the correct gland specification can help simplify purchasing and maintain consistency across products.
At InFocus Electronics, PG-7 and other cable gland solutions are available for lighting and electrical applications, with bulk requirements supported for manufacturers, OEMs and traders.
Frequently Asked Questions
What size cable fits a PG-7 cable gland?
The cable diameter depends on the specific PG-7 gland specification. Always check the stated cable-entry range and measure the outside diameter of the cable before selecting the gland.
Is 12×1 the cable size?
No. 12×1 refers to the thread specification, not the cable diameter. The cable size must be checked separately according to the gland's cable-entry range.
How do I measure a cable for a cable gland?
Measure the outside diameter of the complete insulated cable using a vernier caliper or suitable measuring tool.
Can PG-7 cable glands be used for LED lights?
Yes, PG-7 cable glands can be suitable for LED lighting applications when the gland's cable range, thread and protection rating match the requirements of the lighting product.
Why is cable diameter important when choosing a gland?
The cable diameter determines whether the gland can properly grip and seal around the cable. An incorrect cable size can result in an unsuitable fit.
Are PG-7 cable glands available in bulk?
Yes, small cable glands such as PG-7 can be required in bulk by LED lighting manufacturers, OEMs, electrical manufacturers and traders.
Conclusion
A PG-7 12×1 cable gland should not be selected based only on the 12×1 thread specification. The thread determines how the gland fits into the equipment, while the cable-entry range determines which cable diameter the gland can accommodate.
For the correct selection, first measure the outside diameter of your cable, then check the PG-7 gland's specified cable range and make sure the thread matches your enclosure or lighting product.
For manufacturers and traders requiring PG-7 small cable glands in bulk, selecting a consistent specification is especially important for regular production and assembly requirements.
