PCT-212 Connector: Specifications, Applications, Wiring & Selection Guide
The PCT-212 connector is a compact two-wire push-in connector designed to make electrical wire connections faster and more convenient. Its small size, lever-operated connection mechanism and simple installation make it suitable for a wide range of electrical wiring and LED lighting applications.
For LED lighting manufacturers, OEMs, electricians, distributors and electrical component buyers, the PCT-212 is a useful solution when a compact two-position wire connection is required.
But what exactly is a PCT-212 connector, how is it installed, what wires can be used with it, and how do you select the correct connector for your application?
This guide explains the PCT-212 connector, its construction, wiring method, applications, selection considerations and common questions.
What Is a PCT-212 Connector?
A PCT-212 is a two-position push-in wire connector used to join electrical conductors.
The connector uses a lever-operated clamping mechanism. Instead of relying on a conventional screw terminal, the conductor is inserted into the connection point and secured using the connector's internal clamping system.
The "212" model designation is commonly associated with the two-position configuration in this family of PCT quick connectors. Other models in the same family can provide different numbers of connection positions, such as PCT-213, PCT-214 and PCT-215.
Because different manufacturers can publish different electrical and material specifications for PCT-series connectors, buyers should always confirm the exact specifications of the particular PCT-212 version before using it in an electrical design.
PCT-212 Connector at a Glance
The PCT-212 is generally selected when the application requires:
- Two electrical connection positions
- Compact wire joining
- Push-in or lever-operated wiring
- Quick installation
- Organized internal wiring
- A connector suitable for compatible electrical conductors
- A space-saving alternative to larger terminal arrangements
Published PCT-212 specifications vary between product versions. For example, some manufacturer documentation lists 250 V and 32 A, while other versions are marketed with higher voltage ratings. Wire-size ranges and temperature ratings can also differ.
For this reason, the specification of the actual product supplied should always be checked before installation.
How Does a PCT-212 Connector Work?
The PCT-212 uses a simple lever-operated connection method.
The general process is:
Step 1: Prepare the Wire
Cut the conductor to the required length and remove the insulation according to the connector manufacturer's specified stripping length.
Several PCT-212 datasheets specify a stripping length around 9–10 mm, while some documentation gives a broader range. Always follow the specification supplied with the actual connector.
Step 2: Open the Lever
Lift the operating lever to open the internal clamping mechanism.
Step 3: Insert the Conductor
Insert the prepared conductor fully into the appropriate connection opening.
Step 4: Close the Lever
Push the lever back down.
The internal contact mechanism then holds the conductor in place.
Step 5: Check the Connection
After installation, make sure the conductor is properly retained and that no excessive bare conductor is exposed.

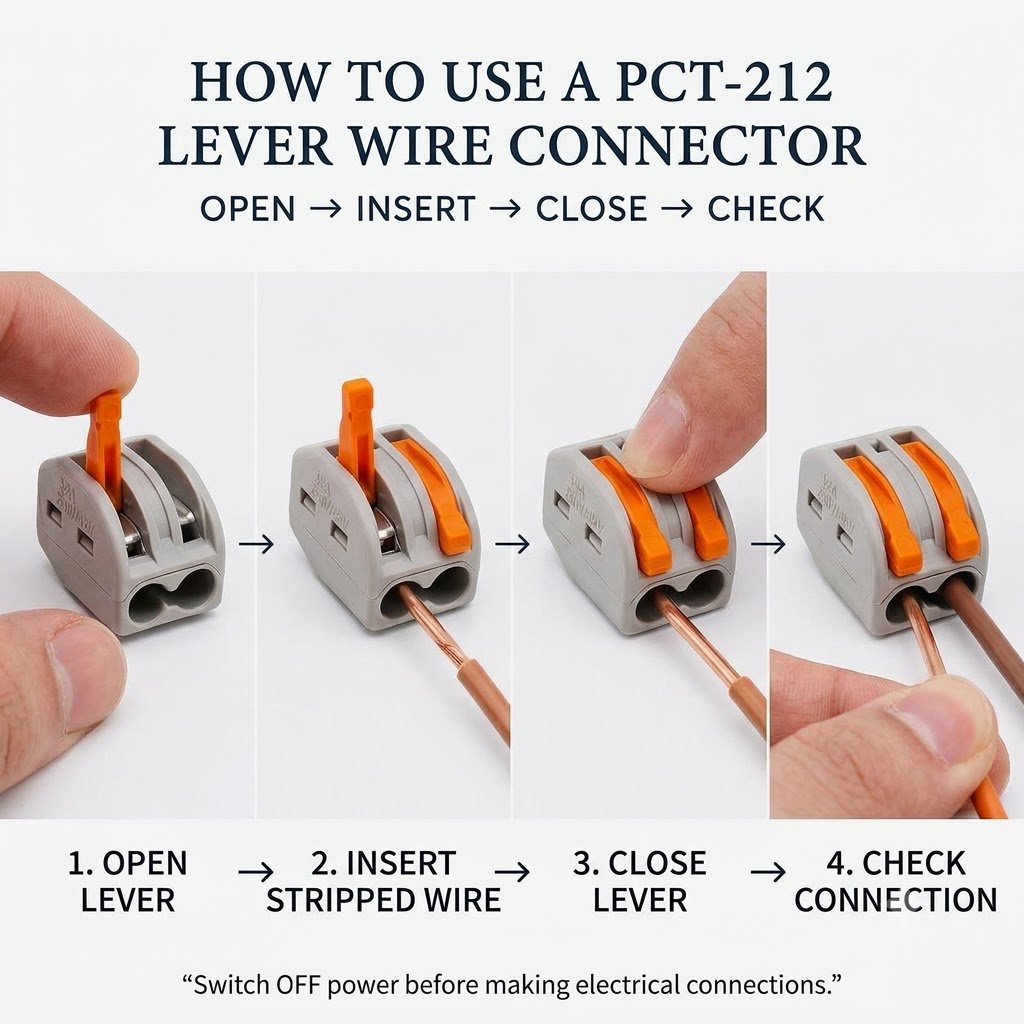

This basic procedure is illustrated in manufacturer documentation for PCT-212 connectors.
What Type of Wire Can Be Used With a PCT-212?
Wire compatibility is one of the most important specifications to check before purchasing a PCT-212 connector.
Published specifications for PCT-212 products commonly list support for solid conductors, with some versions also supporting stranded or flexible conductors within specified ranges. For example, one published specification lists 0.08–2.5 mm² for hard wire, while other PCT-212 documentation specifies different ranges depending on the connector version.
Therefore, do not select a PCT-212 solely because the model number matches.
Check:
- Conductor type
- Wire cross-sectional area
- Solid or stranded construction
- Required stripping length
- Connector manufacturer's specifications
PCT-212 Connector for LED Lighting
LED lighting is one of the applications where compact wire connectors can be particularly useful.
Modern LED luminaires often have limited internal space. The wiring may need to connect the LED driver, mains input, LED board, internal cables or other electrical components within a relatively compact housing.
A suitable PCT-212 connector can help simplify these connections.
Potential LED lighting applications include:
- LED panels
- LED downlights
- Ceiling lights
- Linear lights
- Flood lights
- Street lighting
- Industrial lighting
- Commercial luminaires
- Decorative lighting
- LED driver connections
The connector must always be selected according to the electrical requirements of the specific luminaire.
Why Use a PCT-212 Connector in LED Fixtures?
There are several reasons manufacturers may choose a compact lever-operated connector.
Compact Construction
The small connector format can be useful inside LED housings where installation space is limited.
Quick Wiring
The lever mechanism can make conductor insertion and removal convenient compared with conventional screw-terminal wiring.
Organized Connections
A dedicated connector can help keep internal wiring more structured than loose wire-to-wire connections.
Production-Line Convenience
For OEM and lighting manufacturers producing large quantities of fixtures, a consistent connector and wiring process can simplify assembly.
Maintenance Access
Depending on the connector design and application, lever-operated connections can make it easier to access and disconnect wires during servicing.
PCT-212 vs PCT-213 Connector
One of the most common questions when purchasing PCT connectors is the difference between PCT-212 and PCT-213.
The primary difference is the number of connection positions.
| Model | Typical configuration | | ------- | --------------------- | | PCT-212 | 2-position / 2-wire | | PCT-213 | 3-position / 3-wire | | PCT-214 | 4-position / 4-wire | | PCT-215 | 5-position / 5-wire | | PCT-218 | 8-position / 8-wire |
These model configurations are documented across multiple PCT connector catalogues.
The appropriate model depends on the number of conductors that need to be connected and the wiring arrangement of the application.
PCT-212 Connector Size
The physical dimensions of PCT-212 connectors can vary slightly between manufacturers.
Published examples show dimensions around 20–21 mm in length, approximately 12–13 mm in width and approximately 14–15 mm in height, depending on the specific design.
This makes the PCT-212 relatively compact for applications requiring a two-position wire connection.
However, physical dimensions should always be checked against the actual product drawing before designing the connector into a PCB, luminaire housing, junction box or electrical enclosure.
PCT-212 Connector Electrical Specifications
Electrical specifications are particularly important when selecting a PCT-212.
Different manufacturers and product versions publish different ratings. Examples found in current product documentation include:
- Rated current: commonly 32 A
- Rated voltage: commonly 250 V on some versions
- Higher voltage ratings on certain versions
- Different supported wire ranges
- Different operating temperature ranges
For example, one manufacturer specification lists 250 V and 32 A with a 0.5–4 mm² wire range, while another PCT-212 specification lists 250 V and 32 A with different conductor ranges.
Therefore, the exact rating of the PCT-212 supplied by Infocus Electronics should be confirmed from the applicable product specification rather than assuming that every PCT-212 on the market has identical ratings.
Materials Used in PCT-212 Connectors
PCT-212 connectors generally consist of three important parts:
Insulating Housing
The outer housing provides electrical insulation and protects the internal connection mechanism.
PCT connector documentation commonly specifies engineering plastics such as nylon or modified nylon for the housing.
Electrical Contact
The internal conductive element establishes electrical contact with the inserted conductor.
Copper is commonly specified for the contact material in PCT connector documentation.
Spring or Clamping Mechanism
The internal spring mechanism provides the clamping force required to retain the conductor.
The exact material and construction can vary by manufacturer.
Applications of PCT-212 Connectors
PCT-212 connectors can be considered for a wide range of electrical applications where the connector's specifications are suitable.
LED Lighting
Used for compatible internal wiring connections in LED luminaires.
Electrical Junction Boxes
Suitable connector configurations can help organize wire connections inside electrical boxes.
Commercial Lighting
Compact wire connectors can be useful in commercial lighting equipment and fixtures.
Industrial Electrical Equipment
Depending on the electrical and environmental requirements, suitable PCT connectors can be used in industrial electrical assemblies.
Building Wiring
Certain PCT connector versions are marketed for building wire branching and connection applications.
OEM Electrical Assemblies
Manufacturers can integrate suitable connectors into repeat-production electrical assemblies.
How to Choose the Right PCT-212 Connector
Before ordering a PCT-212 connector, check the following specifications.
1. Number of Connection Positions
PCT-212 is a two-position configuration. If your application requires three, four or more conductors, another model may be more appropriate.
2. Wire Size
Check the conductor cross-section supported by the exact connector.
3. Conductor Type
Confirm whether the connector supports solid, stranded or flexible conductors.
4. Voltage Rating
The connector's rated voltage must be suitable for the intended electrical system.
5. Current Rating
Check the rated current before using the connector in a power circuit.
6. Operating Temperature
If the connector will be installed inside a hot LED luminaire or industrial enclosure, verify its specified operating temperature range.
7. Physical Dimensions
Make sure the connector fits inside the intended housing or electrical enclosure.
8. Installation Method
Confirm the recommended stripping length and conductor insertion method.
Common PCT-212 Connector Buying Mistakes
Choosing a connector only by its model number can lead to compatibility problems.
Here are some common mistakes to avoid.
Choosing by Model Number Alone
Not every PCT-212 connector available in the market necessarily has identical specifications.
Ignoring Wire Size
A connector must be compatible with the conductor being used.
Ignoring Electrical Rating
Voltage and current ratings should be checked before installation.
Incorrect Wire Stripping
Too little or too much exposed conductor can affect the connection.
Not Checking Physical Dimensions
A connector may have suitable electrical specifications but still fail to fit inside the intended enclosure.
Mixing Different Specifications
When replacing an existing connector, verify the complete specification rather than assuming that another product with the same model number is identical.
PCT-212 Connector for OEM and Bulk Buyers
For OEMs and lighting manufacturers, connector selection is not only about the unit price.
A production application may require consistent:
- Connector dimensions
- Wire compatibility
- Electrical ratings
- Operating temperature
- Material
- Colour
- Packaging
- Quantity availability
- Quality requirements
For bulk requirements, buyers should provide the connector model, required quantity and application details when requesting a quotation.
This is especially useful for LED lighting manufacturers who use the same connector repeatedly across production batches.
PCT-212 Connector Supplier in Mumbai & India
Infocus Electronics supplies PCT connector solutions for LED lighting manufacturers, OEMs, electrical component buyers, distributors and bulk requirements.
The PCT connector range includes models such as PCT-212, PCT-213, PCT-214, PCT-215, PCT-218 and other configurations for different wiring requirements.
For customers looking specifically for a PCT-212 connector, the product should be selected according to the required wire size, conductor type, electrical rating, dimensions and intended application.
For bulk, OEM and dealer requirements, contact Infocus Electronics for product availability and specifications.
Frequently Asked Questions About PCT-212 Connector
What is a PCT-212 connector?
A PCT-212 is a two-position push-in or lever-operated wire connector designed for joining compatible electrical conductors.
Is PCT-212 a two-wire connector?
PCT-212 is generally identified as a two-position or two-wire connector within the PCT connector family.
What is the PCT-212 connector used for?
It can be used for compatible electrical wire connections in LED lighting, electrical assemblies, junction boxes, commercial lighting and other applications where its specifications are suitable.
Can PCT-212 be used for LED lights?
Yes. Suitable PCT-212 connectors can be used for internal wiring connections in LED lighting fixtures, provided the connector's electrical and mechanical specifications match the application.
What wire size does PCT-212 support?
The supported wire size depends on the specific PCT-212 version. Published specifications range across different products, so the manufacturer's datasheet should be checked before installation.
How do you install a PCT-212 connector?
Generally, strip the conductor to the specified length, open the lever, insert the conductor fully and close the lever to secure the connection. Follow the installation instructions for the exact connector supplied.
What is the difference between PCT-212 and PCT-213?
PCT-212 is generally a two-position connector, while PCT-213 is generally a three-position connector.
Is PCT-212 suitable for bulk purchase?
Yes. PCT-212 connectors can be sourced for OEM, manufacturing, distributor and project requirements. Bulk buyers should confirm the required specifications and quantity before ordering.
Conclusion
The PCT-212 connector is a compact solution for two-position electrical wire connections. Its lever-operated design can simplify wiring and make it suitable for compatible LED lighting, electrical and OEM applications.
However, selecting the correct PCT-212 should involve more than checking the model number.
Wire size, conductor type, voltage rating, current rating, operating temperature, stripping length and physical dimensions should all be checked against the specification of the actual connector.
For LED lighting manufacturers, OEMs, distributors and bulk buyers, the right PCT-212 connector can provide a practical way to organize and simplify compatible internal electrical connections.
